Function Boards 4-43
Chapter 4: Board Installation
MBX IP Hardware & Installation Guide
LED Indication

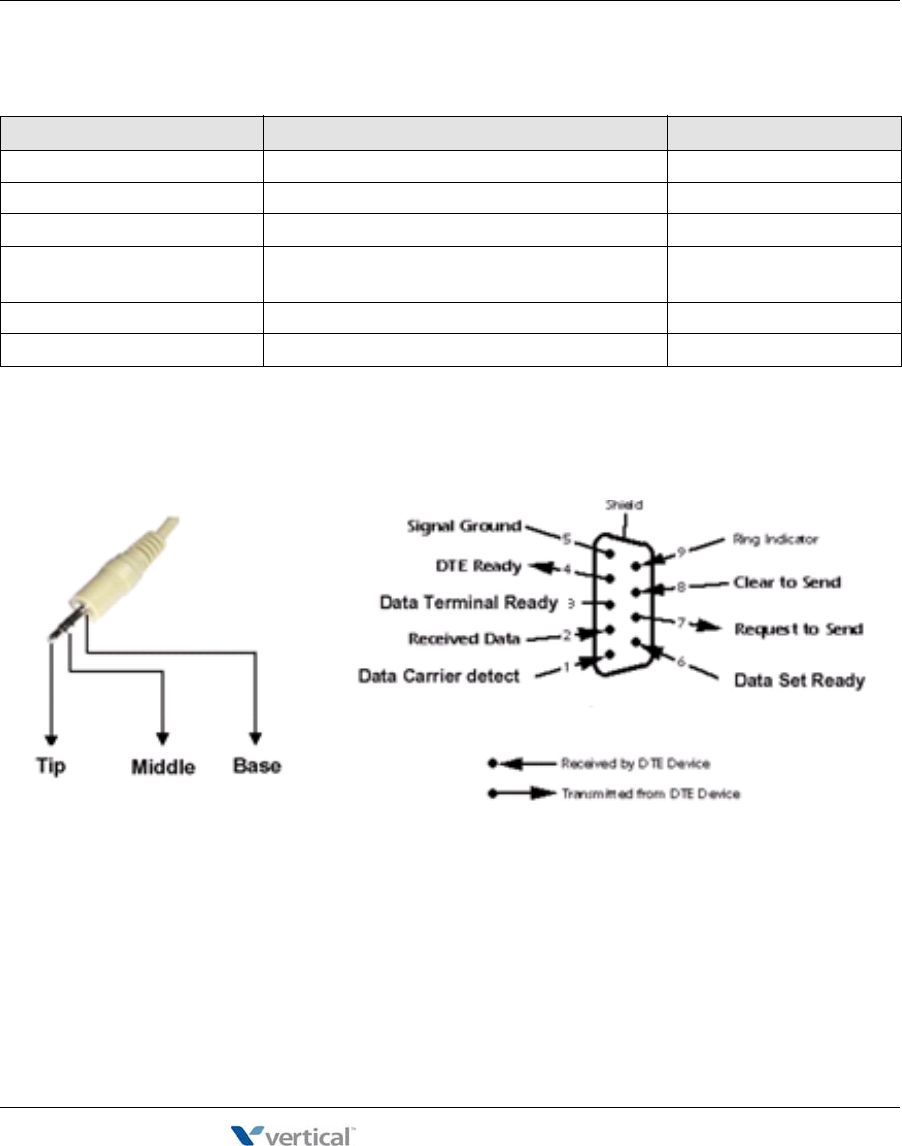

Serial to Audio Jack Cable Specification
Related Boards include: PRIB, VMIB, VOIB8/VOIB24, WTIB4/WTIB8.
LED FUNCTION REMARK
LD1 VOIB Task Active (CMD/Event Processing) Blink (blue Color)
LD2 Trace Task Active (Line Monitor) --
LD3 Transcoding is used ON: TRANSCODEC
LD4 VOIP call is active (Channel in use) ON: Channel use.
OFF: All Channel Idle
MJ1-LD1 (Green/Orange) ON – Link, Blink – Data Transfer --
MJ1-LD2 (Yellow) ON - 100Mbps, OFF – 10Mbps --
Release 1.7
April 2012
