Function Boards 4-40

Chapter 4: Board Installation

MBX IP Hardware & Installation Guide

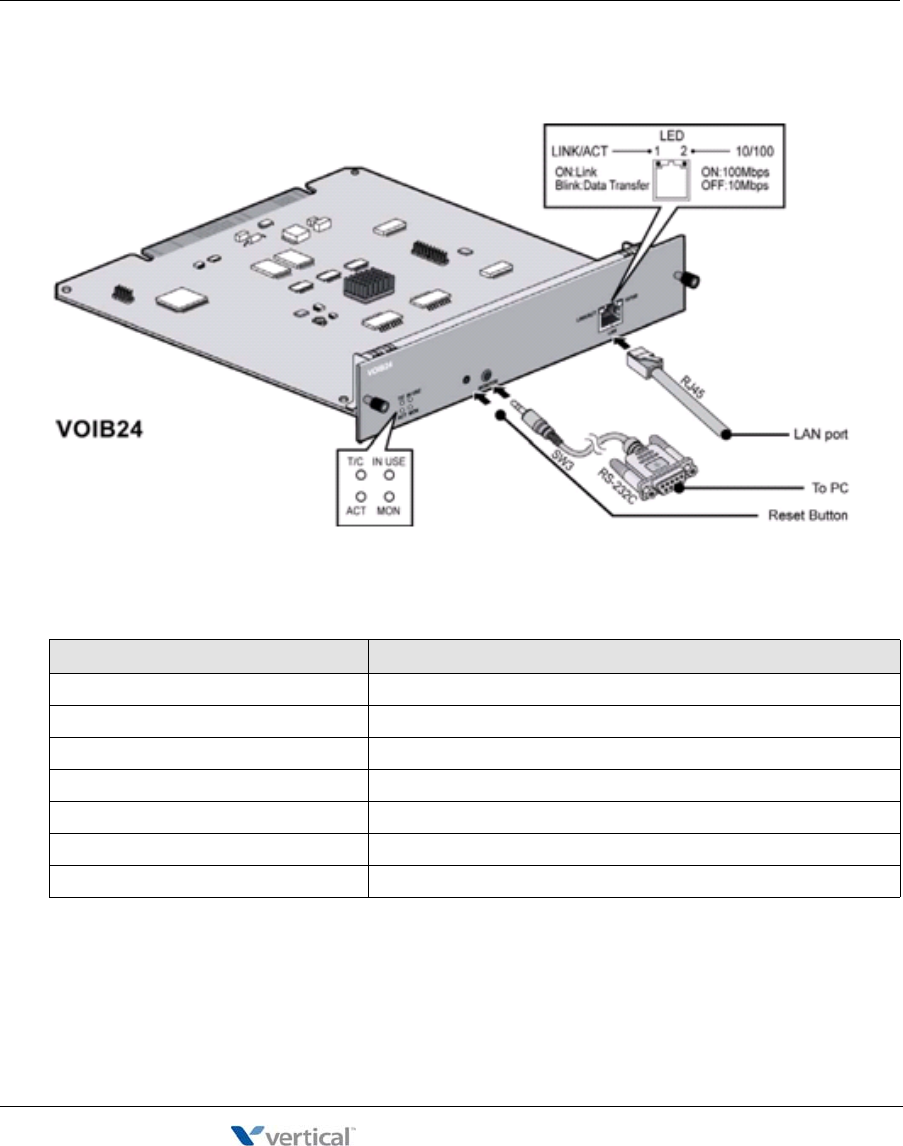

VOIB8/24 (Voice over Internet Protocol Board 8ch./24ch.) con’d

LAN, VoIP Specification

ITEM SPECIFICATION

LAN Interface 100 Base-T Ethernet (IEEE 802.3)

Speed 100 Mbps (Auto-Negotiation)

Duplex Half Duplex or Full Duplex (Auto-Negotiation)

VoIP Protocol H.323 Revision 4, SIP Revision 4

Voice Compression G.711/G.726/G729/G.723.1

Voice/Fax Switching T.38

Echo cancellation G.165

Release 1.7

April 2012
